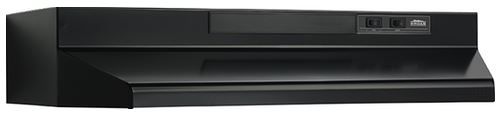

Broan® 30" Black Convertible Under The Cabinet Hood
At a Glance
The F40000 series provides installation flexibility with 4-way convertibility to fit virtually all applications.
Proposition 65 Warning for California Residents
Construction
| Chimney | Fixed |
|---|
Dimensions
| Max Height Above Cooktop | 18 |
|---|
Display
| Controls | Mechanical |
|---|
General Features
| Filter Type | 1 Dishwasher Safe Aluminum Grease Filter |
|---|
Other
| Number of Lights | 1 |
|---|---|
| Air Mover Type(s) | Fan |
| Air Mover(s) Speed | 2 |
| Sones (Noise Level) Rating | 6.5 |
General Specs
| Width (in.) | 30 |
|---|---|
| Height (in.) | 6 |
| Duct Size (in.) | 3.25" x 10" |
| Depth (in.) | 17.50 |
| Appliance Color | Black |
| Color Finish Name | Black |
| Range Hood Type | Under Cabinet |
| ENERGY STAR Certified | No |
| Appliance Fit Width (in.) | 30 |
| Maximum CFM | 160 |
| Sones Rating | 6.5 |
| Voltage | 120 |
| Amp | 2.5 |
| Range Hood Features | Ductless Capable |
| Noise Level (Sones) | Standard - (High) |
| Ventilation Type | Convertible (Both) |
Broan® 30" Black Convertible Under The Cabinet Hood
Model #: F403023
Call for Best Price
At a Glance
Get to know this product.
The hood is designed for under cabinet use and installs as 3-1/4 in. x 10 in. ducted opening with vertical or horizontal ducting; or 7 in. round vertical ducting or as non-ducted with air re-circulation. The hood features a fan designed for years of trouble free service, an easy to clean grease filter, a protective lamp lens that distributes light evenly over the cook-top and control switches for fan speed and light activation.
Four-way convertible; installs ducted 3-1/4" x 10" (vertical and horizontal), 7" round (vertical) and non-ducted. Non-Ducted Filter sold separately - Model 41F
160 CFM, 6.5 Sone (3-1/4" x 10" discharge) or 190 CFM (7" round discharge) performance – HVI 2100 Certified
Dishwasher-safe aluminum grease filter
A protective lamp lens distributes light evenly over the cook-top and accepts up to 75W bulb (bulb not included)
Includes 3-1/4" x 10" damper/adapter and 7" round adapter
