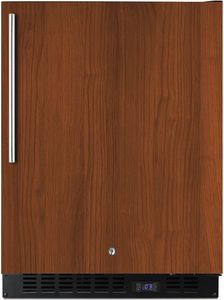

Summit® 3.7 Cu. Ft. Panel Ready Undercounter Freezer


Model #:

ALFZ53IF

Model #: ALFZ53IF
1357822
Summit
$99,999.00

At a Glance

Product Dimensions 32"h x 23.63"w x 24.63"d

Summit manufactures the industry's largest selection of built-in appliances sized for use under lower ADA compliant counters, including frost-free freezers specially designed to match our popular ADA compliant refrigerators. Model ALFZ53IF is a 24" wide all-freezer that can be paired with our AL54 all-refrigerator. *CUSTOM PANEL & HANDLE SOLD SEPARATELY*Read More

Call for Best Price

What We Offer

Services
None Selected
You Might Also Need
None Selected

Warehouse InventoryAvailable in 3-5 Days

Get to know this product.

Product Overview

Product Overview

Sized at just 32" high, it can easily be installed under an ADA compliant counter. The door features an integrated stainless steel frame designed to accept full panel overlays, allowing users to seamlessly blend the unit into their own cabinetry design (panel size: 28 3/16" H x 23 5/16" W; maximum weight: 10 lbs.). This unit has a flush back for easy cleaning and a right angle cord.

Inside, the ALFZ53IF utilizes frost-free operation with fan-forced cooling to ensure low maintenance and even temperature distribution. Recessed LED lighting offers an attractive yet efficient look inside the black interior. Three adjustable chrome shelves can be set at five different positions to best accommodate your storage needs. Additional user-friendly features include an open door alarm, high temperature alarm, and Sabbath mode setting that lets you disable some of the electrical elements during periods of observance. This unit features intuitive digital controls located in the external kickplate.

The ALFZ53IF freezer is approved for residential use and also ETL-S listed to NSF-7 standards for commercial applications. With its deluxe style and user-friendly features, this unit is the perfect choice for home or commercial kitchens. It's a perfect match for our AL54IF all-refrigerator, both panel-ready to create a truly custom refrigerator/freezer set under ADA compliant counters. Additional door finishes are available, including stainless and black stainless steel, and our new vibrant colors. Browse the full selection to explore your options.

ADA Compliant Design

32" height allows easy installation under lower ADA compliant counters

Built-In Capable

Make the best use of space by installing your freezer under the counter and flush with other cabinets

Panel-Ready Door

Integrated stainless steel door frame accepts full overlay panels, allowing you to customize the refrigerator door or blend it into your cabinetry design; panel size: 23 5/16" W x 28 3/16" H and at least 3/4" thick; 10 lbs. maximum; customers provide their own handles

Frost-Free Operation

No-frost convenience eliminates the need to manually defrost the unit

Digital Thermostat

Electronic controls offer easy and intuitive temperature management

Recessed LED Light

Elegant lighting with an on/off switch located on the control panel

Factory-Reversible Door

Right hand door swing by default; if you require the door to open from the other direction, add upgrade "LHD" upon order

Adjustable Shelves

Rearrange your freezer space to accommodate all shapes and sizes or remove shelves for a simple clean-up

Open Door Alarm

Audible alarm will sound if the door is left open longer than one minute

Sabbath Mode Setting

Optional setting lets you disable the lighting and alarm for up to 48 hours

High Temperature Alarm

High temperature alarm sounds if the unit's interior goes out of the recommended range

Temperature Memory Function

Unit will retain its last settings when power is restored in the event of power loss

Right Angle Plug

Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Sealed Back

Space-saving design with no exposed coils for easier cleanability

Matching Refrigerator Available

Pair with the AL54IF for a matching side-by-side set under lower ADA compliant counters

Commercially Approved

ETL-S listed to NSF-7 commercial standards

Fully Finished Cabinet

Allows the freezer to be used as a freestanding model

100% CFC Free

Environmentally friendly design without ozone-damaging chemicals

CARB Compliant

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Useful Documents
Specifications

General Specs

Product Weight (lbs.)90
Width (in.)23.63
Depth (in.)24.63
Height (in.)32
Defrost SystemAutomatic
Manufacturer Warranty1 Year Parts & Labor/5 Year Compressor
ColorCustom
Depth w/Door Open 90 Degrees (in.)45
Installation TypeBuilt-In or Freestanding
Depth TypeCounter Depth
Depth Excluding Handles (in.)22.63
Depth Including Handles (in.)24.63
Overall Height (in.)32
Door Panel TypePanel
Handle TypeTubular
Door Swing OptionRight Hinge
Color Finish NameCustom
ADA CompliantYes
ENERGY STAR CertifiedNo
Appliance Fit Width (in.)24
Total Capacity (cu. ft.)3.7
Voltage115
Frequency60
Amp1.5
Freezer FeaturesDoor/Child Lock
WarningProposition 65 Warning for California Residents
